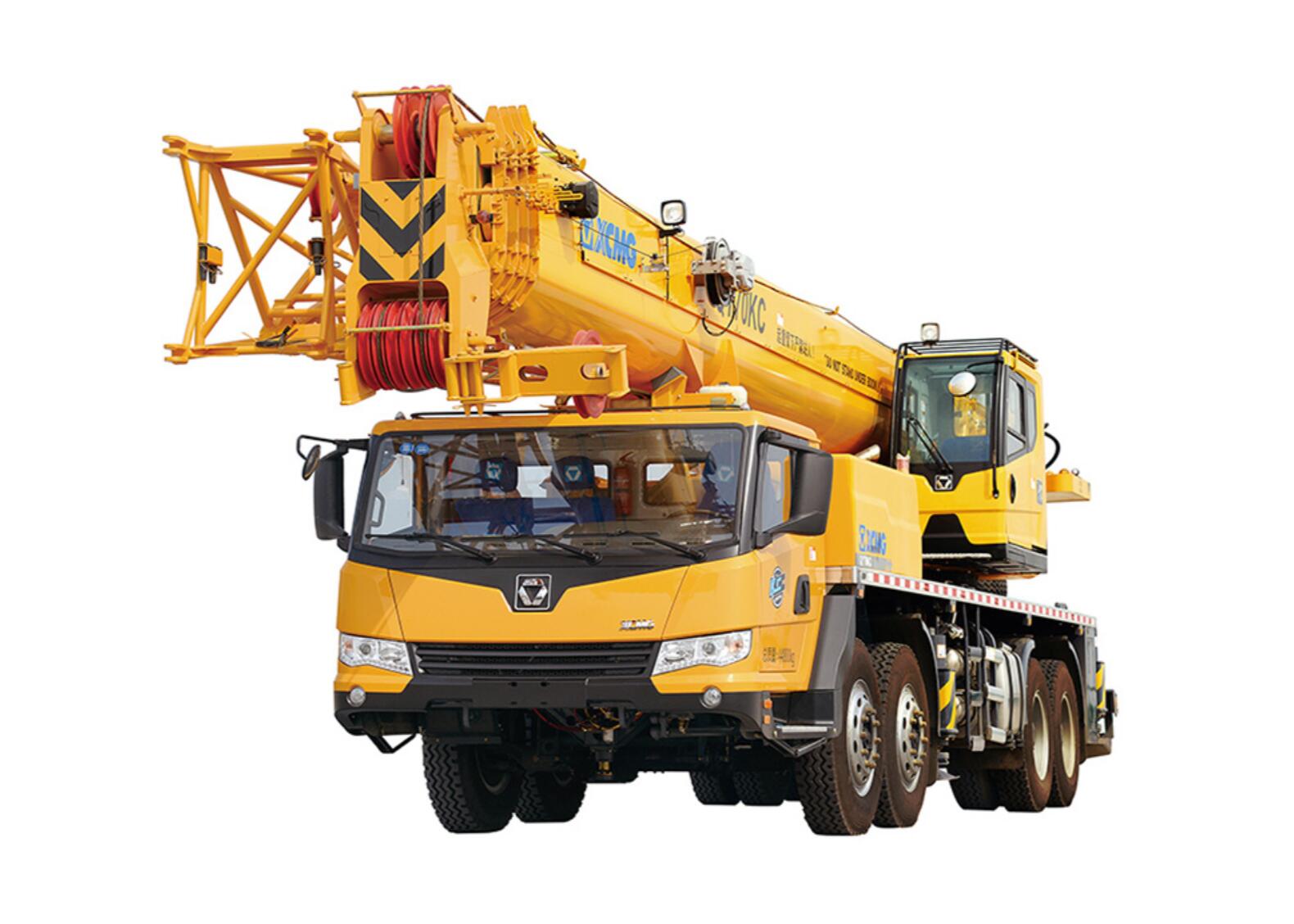

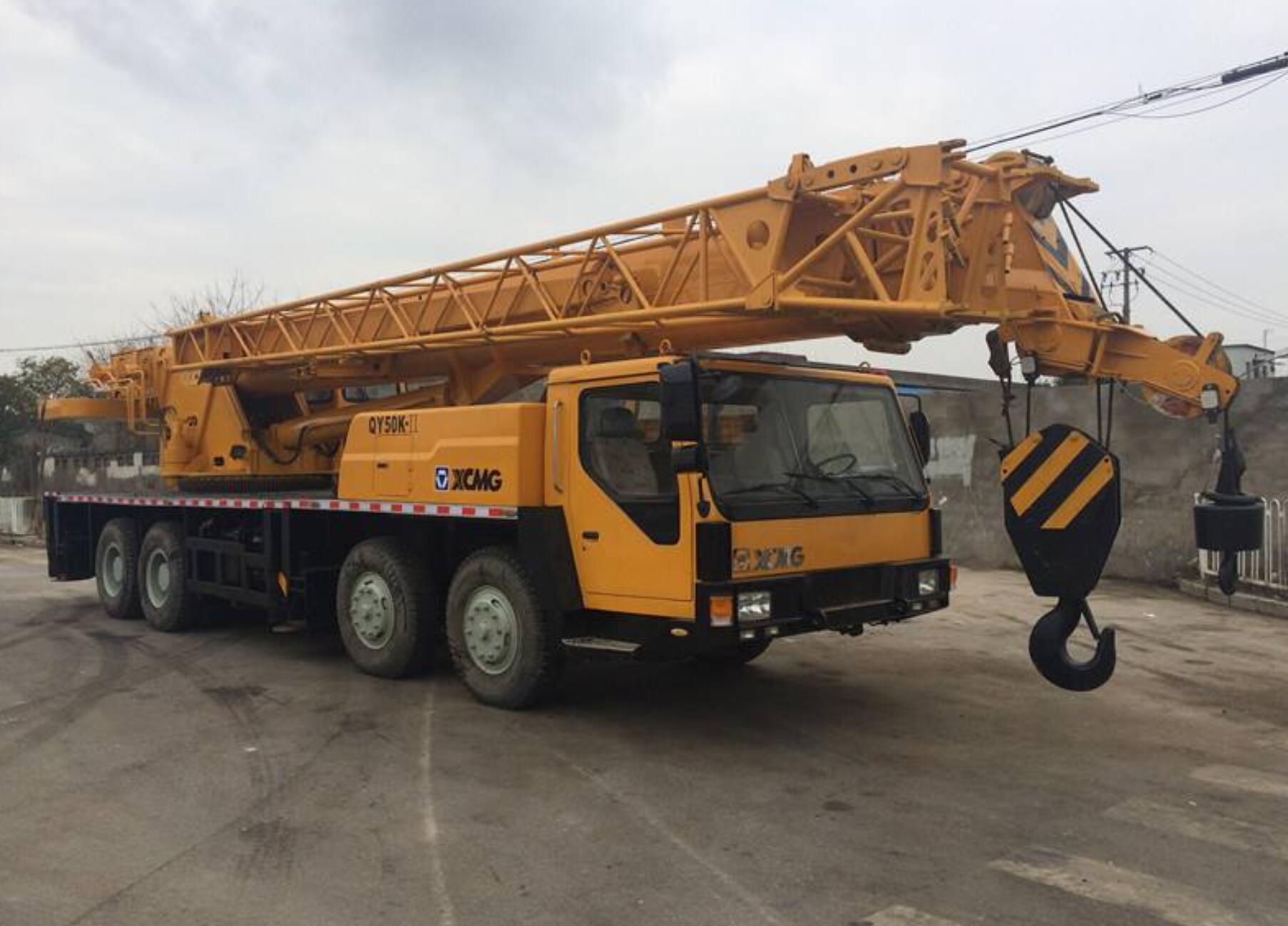

XCMG QY100K/XCT100 TRUCK CRANE

XCMG QY100K/XCT100 TRUCK CRANE

Dimension Unit QY100K-I
Overall length, width, height mm 15600×3000×3850
Wheel base mm 1420+2420+1800+1420+1505
Weight
Total weight in travel kg 54900   58000
Axle load
Axle 1 kg 7500    7500
Axle 2 kg 7500    7500
Axle 3 kg 8300    10000
Axle 4 kg 12000    12500
Axle 5 kg 12000    12500
Axle 6 kg 7600       8000
Power
Engine rated power kW/(r/min) 360/1800 (306/1900)
Engine rated torque N.m/(r/min) 2200/1300 (2010/1200)
Engine rated speed r/min 1800 (1900)
Min. ground clearance mm 310
Travel
Approach angle ° 20
Departure angle ° 14
Braking distance (at 30km/h) m ≤10
Max. grade ability % 40
Min. turning diameter m 24
Fuel consumption for 100km L 70
Main performance
Max. rated total lifting capacity m 100
Min. rated working radius   3
Turning radius at turntable tail
Counterweight mm 4200
Aux. winch mm 4590
Max. lifting torque   3450
Base boom kN.m 3450(4m×88t)
Fully extended boom kN.m 1950(24m×7.1t)
Fully extended boom+ jib kN.m 1230(19.2m×6t)
Outrigger span (full extension)
Longitudinal m 7.56
Lateral m 7.6
Lifting height
Base boom m 13.5
Fully extended boom m 50.9
Fully extended boom+ jib m 70.4
Boom length m 13.5
Fully extended boom m 51
Fully extended boom+ jib m 51+18.1+4
Working speed
Jib setting angle ° 0、15、30
Boom luffing time s 75
Boom
Boom telescoping time
Full extension s 160
Max. swing speed r/min 2
Outrigger extension/retraction time
Outrigger beam in extension/retraction s 25/15
Outrigger jack in extension/retraction s 45/25
Lifting speed (single rope, layer 4)
Main winch m/min 105
Aux. winch m/min 104
