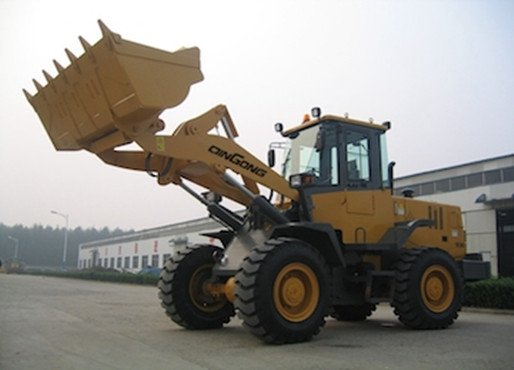

Wheel Loader ZL20F

Wheel Loader ZL20F

QINGONG Wheel Loaders ranges from 1.6 ton to 6.o ton on loading capacity, including ZL16F, ZL20F, 836, 856, ZL50G, 966, etc.

We are making use of the product development of Cat's wheel loader advanced technique, the manufacturing technique, the management technique and strong funds real strength builds up the manufacturing base that the high quality with a competition ability, we establish the value as the direction of the marketing and the service network, hence carrying out a target of being the profession leader!
MAIN SPECIFICATIONS
Rated load 2000kg
Overall weight 5700kg
Rated bucket capacity 1.0m3
Maximum tractive force 40kn
Breakout force ≥ 60kn
Maximum grade ability 30°
Maximum dump height 2800mm
Max. dump reach 1050mm
Overall length 8020mm
Minimum turning radius 6640mm
Engine
Model Cummins 4BT3.9-C100
Rated power 60kw—2400r/min
Transmission
Torque converter ZL20
Maximum speed 24km/h
Gearbox mode power shift
Gear shift 2 forward shift 2 reverse shift
Axles
Main reducing spiral bevel gear grade 1 reduction
Decelerating mode planetary reduction grade 1
Wheel base 2350mm
Wheel tread 1500mm
Minimum ground clearance 250mm
Brake system
Service brake air over hydraulic disc brake on 4 wheels
Parking brake manual king- king- hub brake
Hydraulic system
System working pressure 16mpa
Boom lifting time 6s
Total time 10s
Fuel tank capacity 110L
Tire
Type specification 16/70-20
